MobAI + Claude Code: Autonomous iOS App Testing Guide

What Is MobAI?

MobAI is a desktop app that gives AI coding agents (Claude Code, Cursor, Codex) the ability to see and interact with real mobile devices.

It provides an MCP server + HTTP API that lets your AI agent:

Capability	How
See the screen	Screenshots + accessibility tree
Tap buttons	Coordinate-based or element-based taps
Type text	Direct keyboard input
Swipe/scroll	Directional or coordinate-based
Read UI elements	Structured accessibility tree (filtered, indexed)
Run scripts	MobAI DSL — 20+ action types
Launch apps	By bundle ID

Key point: Everything runs locally. Screenshots, UI data, and automation happen on your machine. Your app data never leaves your computer.

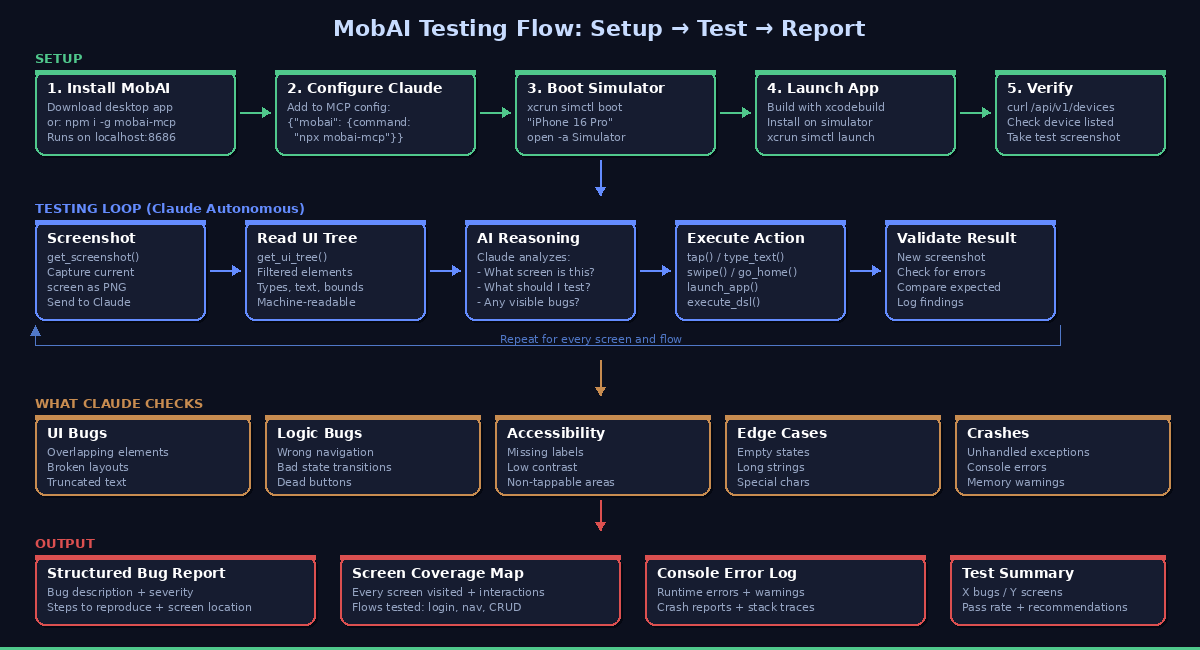

How It Works (The Architecture)

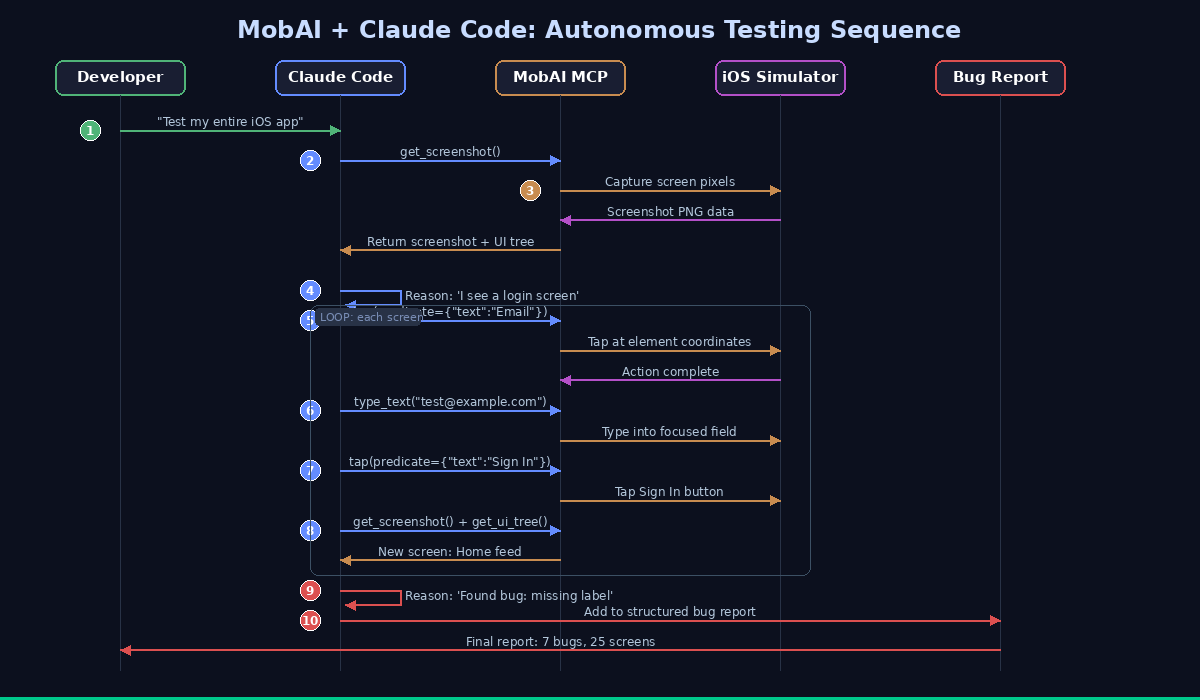

The flow:

You give Claude Code a prompt ("test my app")
Claude calls MobAI's MCP server
MobAI takes a screenshot + reads the accessibility tree
Claude sees a structured, machine-readable UI map
Claude decides what to tap/swipe/type
MobAI executes the action on the simulator
Repeat: screenshot → reason → act → screenshot
Claude reports all findings

The accessibility tree is the breakthrough. Instead of raw pixel matching, MobAI gives Claude a clean, filtered tree with element types, text labels, bounds, and indices. Claude can reason about full screens without burning context window.

What You Need

Requirement	Details
macOS	Required for iOS Simulator
Xcode	Latest version + iOS Simulator
Node.js	v18+
Claude Code	Installed and authenticated
MobAI	Free tier works (1 device, 100 API calls/day)
Your iOS app	Running in Simulator

Step 1: Install MobAI

Option A: Download the Desktop App

Go to mobai.run
Download for macOS
Install and open
Connect your iOS Simulator (auto-detected)

Option B: MCP Server via npm

npm install -g mobai-mcp

Verify installation:

npx mobai-mcp --version

Step 2: Configure Claude Code

Add MobAI to your Claude Code MCP config.

For Claude Code (.claude/settings.json):

{
  "mcpServers": {
    "mobai": {
      "command": "npx",
      "args": ["-y", "mobai-mcp"]
    }
  }
}

For Cursor (.cursor/mcp.json):

{
  "mcpServers": {
    "mobai": {
      "command": "npx",
      "args": ["-y", "mobai-mcp"]
    }
  }
}

Restart Claude Code after adding the config.

Step 3: Boot Your iOS Simulator

# List available simulators
xcrun simctl list devices available

# Boot a specific simulator (e.g., iPhone 16 Pro)
xcrun simctl boot "iPhone 16 Pro"

# Open Simulator app
open -a Simulator

Output:

== Devices ==
-- iOS 18.4 --
    iPhone 16 (ABCD-1234) (Shutdown)
    iPhone 16 Pro (EFGH-5678) (Booted) ✓
    iPhone 16 Pro Max (IJKL-9012) (Shutdown)

Step 4: Install & Launch Your App

# Build your app for simulator
xcodebuild -project MyApp.xcodeproj \
  -scheme MyApp \
  -sdk iphonesimulator \
  -destination 'platform=iOS Simulator,name=iPhone 16 Pro' \
  build

# Install the app
xcrun simctl install booted ./Build/Products/Debug-iphonesimulator/MyApp.app

# Launch the app
xcrun simctl launch booted com.yourcompany.MyApp

Step 5: Verify MobAI Can See Your Device

Once MobAI is running, test the connection:

Via HTTP API:

# List connected devices
curl http://127.0.0.1:8686/api/v1/devices

Output:

{
  "devices": [
    {
      "id": "EFGH-5678",
      "name": "iPhone 16 Pro",
      "platform": "ios",
      "status": "connected"
    }
  ]
}

Take a test screenshot:

curl http://127.0.0.1:8686/api/v1/devices/EFGH-5678/screenshot \
  --output test-screenshot.png

Read the accessibility tree:

curl http://127.0.0.1:8686/api/v1/devices/EFGH-5678/ui-tree

Output (simplified):

{
  "tree": [
    {
      "index": 0,
      "type": "button",
      "text": "Sign In",
      "bounds": {"x": 150, "y": 400, "width": 120, "height": 44}
    },
    {
      "index": 1,
      "type": "textField",
      "text": "",
      "placeholder": "Email",
      "bounds": {"x": 50, "y": 280, "width": 300, "height": 44}
    }
  ]
}

Step 6: The One Prompt That Tests Everything

Open Claude Code in your project directory and run:

You have access to MobAI tools to control the iOS Simulator.

My app is running in the simulator. I want you to:

1. Take a screenshot and read the accessibility tree
2. Explore EVERY screen in the app
3. Tap every button, fill every form, test every flow
4. For each screen:
   - Document what you see
   - Try valid AND invalid inputs
   - Check for visual bugs, broken layouts, missing labels
   - Test edge cases (empty states, long text, special characters)
5. Check the debug console/logs for errors
6. Give me a structured bug report with:
   - Bug description
   - Steps to reproduce
   - Screen where it was found
   - Severity (critical/high/medium/low)

Start now.

What happens next:

Claude will autonomously:

Take screenshots and parse the accessibility tree
Navigate through your app screen by screen
Tap buttons, fill forms, trigger actions
Identify UI issues, crashes, and logic errors
Generate a structured report

How Claude "Sees" Your App

Claude doesn't guess where buttons are. MobAI provides a filtered accessibility tree — not the raw platform dump.

What gets filtered out:

Non-interactive containers
Invisible elements
Redundant wrapper views

What Claude receives:

[0] Button: "Sign In" at (150, 400, 120x44)
[1] TextField: placeholder="Email" at (50, 280, 300x44)
[2] TextField: placeholder="Password" at (50, 340, 300x44)
[3] Link: "Forgot Password?" at (200, 460, 140x20)
[4] Button: "Create Account" at (150, 520, 120x44)

Claude reads this, decides "I'll fill the email field first," then tells MobAI to tap index 1 and type text.

MobAI MCP Tools Reference

These are the tools Claude Code can call through the MCP server:

Tool	What It Does
list_devices	Show connected devices/simulators
get_device	Get info about a specific device
start_bridge	Start automation bridge to device
stop_bridge	Stop the bridge
get_screenshot	Capture current screen
get_ui_tree	Read accessibility tree (filterable)
tap	Tap element by index or coordinates
type_text	Type text into focused field
swipe	Swipe by direction or coordinates
go_home	Press home button
launch_app	Launch app by bundle ID
list_apps	List installed apps
execute_dsl	Run a MobAI Script
run_agent	Run autonomous agent task

MobAI Script DSL: Repeatable Tests

For tests you want to run again, use MobAI's DSL. It supports 20+ action types in a single API call.

Login Flow Test

{
  "steps": [
    {
      "action": "observe",
      "context": "native",
      "include": ["ui_tree", "screenshot"]
    },
    {
      "action": "tap",
      "predicate": {"placeholder": "Email"}
    },
    {
      "action": "type",
      "text": "test@example.com"
    },
    {
      "action": "tap",
      "predicate": {"placeholder": "Password"}
    },
    {
      "action": "type",
      "text": "SecurePass123!"
    },
    {
      "action": "tap",
      "predicate": {"text": "Sign In"}
    },
    {
      "action": "wait_for",
      "predicate": {"text": "Welcome"},
      "timeout_ms": 5000
    },
    {
      "action": "observe",
      "context": "native",
      "include": ["screenshot"]
    }
  ]
}

Run via API:

curl -X POST http://127.0.0.1:8686/api/v1/devices/EFGH-5678/dsl/execute \
  -H "Content-Type: application/json" \
  -d @login-test.json

More DSL Actions

Swipe to scroll:

{"action": "swipe", "direction": "up", "distance": "medium"}

Toggle a switch:

{
  "action": "toggle",
  "predicate": {"type": "switch", "text_contains": "Notifications"},
  "state": "on"
}

Wait for element:

{
  "action": "wait_for",
  "predicate": {"text": "Loading complete"},
  "timeout_ms": 10000
}

Assert element exists:

{
  "action": "assert",
  "predicate": {"text": "Profile"},
  "exists": true
}

HTTP API Quick Reference

Base URL: http://127.0.0.1:8686/api/v1

Endpoint	Method	Purpose
/devices	GET	List all devices
/devices/{id}/screenshot	GET	Take screenshot
/devices/{id}/ui-tree	GET	Get accessibility tree
/devices/{id}/tap	POST	Tap at coordinates
/devices/{id}/type	POST	Type text
/devices/{id}/swipe	POST	Swipe gesture
/devices/{id}/dsl/execute	POST	Run DSL script
/devices/{id}/app/launch	POST	Launch app
/devices/{id}/app/list	GET	List installed apps

Tap example:

curl -X POST http://127.0.0.1:8686/api/v1/devices/EFGH-5678/tap \
  -H "Content-Type: application/json" \
  -d '{"x": 150, "y": 400}'

Type example:

curl -X POST http://127.0.0.1:8686/api/v1/devices/EFGH-5678/type \
  -H "Content-Type: application/json" \
  -d '{"text": "hello@test.com"}'

Real-World Results

Based on published case studies:

Metric	Result
Time to test full app	~8 minutes
Screens covered	25+ screens in 90 seconds (scripted)
Bugs found	Every bug the developer missed
Test maintenance	Zero — no brittle selectors
Script writing	None — natural language prompt

Types of Bugs Claude Catches

UI bugs: Overlapping elements, broken layouts, truncated text
Logic bugs: Wrong navigation, incorrect state transitions
Accessibility bugs: Missing labels, non-interactive elements
Edge cases: Empty states, special characters, long strings
Crashes: Unhandled exceptions in debug logs
Console errors: Runtime warnings and errors

Pro Tips

1. Add CLAUDE.md Context

Create a CLAUDE.md in your project root to give Claude app-specific context:

markdown

# App Testing Context

## App Structure
- Login screen → Home (4 tabs) → Profile
- Settings accessible from Profile tab
- Push notifications permission prompt on first launch

## Known Test Accounts
- Email: test@example.com / Password: Test1234!
- Admin: admin@example.com / Password: Admin1234!

## Key Flows to Test
1. Sign up → Email verification → Onboarding
2. Login → Browse feed → Like post → Comment
3. Profile → Edit → Save changes
4. Settings → Toggle notifications → Verify

## Areas of Concern
- Feed infinite scroll performance
- Image upload in profile edit
- Deep link handling from notifications

2. Pair with XcodeBuildMCP

Use XcodeBuildMCP alongside MobAI so Claude can also build your app, not just test it:

json

{
  "mcpServers": {
    "mobai": {
      "command": "npx",
      "args": ["-y", "mobai-mcp"]
    },
    "xcodebuild": {
      "command": "npx",
      "args": ["-y", "xcodebuild-mcp"]
    }
  }
}

Now Claude can: build → deploy → test → report in one flow.

3. Check Debug Logs

Add this to your prompt to catch runtime errors:

After testing each screen, run `xcrun simctl spawn booted log show
--predicate 'process == "MyApp"' --last 2m --style compact`
to check for runtime errors, crashes, and warnings.

4. Test on Multiple Devices

# Boot multiple simulators
xcrun simctl boot "iPhone SE (3rd generation)"
xcrun simctl boot "iPhone 16 Pro Max"
xcrun simctl boot "iPad Pro 13-inch (M4)"

MobAI Pro ($9.99/mo) supports unlimited devices — test screen sizes simultaneously.

MobAI vs XCUITest vs Appium

Feature	MobAI + Claude	XCUITest	Appium
Setup time	5 minutes	1–2 hours	2–4 hours
Test scripts needed	No	Yes (Swift)	Yes (any lang)
Test maintenance	Zero	High	High
Exploratory testing	Autonomous	Manual	Manual
Accessibility testing	Built-in	Manual asserts	Plugin needed
AI-powered reasoning	Yes	No	No
Cross-platform	iOS + Android	iOS only	iOS + Android
CI/CD integration	API/DSL	Native	Native
Cost	Free–$9.99/mo	Free (Xcode)	Free (OSS)

Pricing

Plan	Price	Devices	API Calls	Offline
Free	$0	1	100/day	No
Pro	$9.99/mo	Unlimited	Higher quota	7-day

Free tier is enough to get started and test a single app.

Troubleshooting

Problem	Fix
"No devices found"	Boot simulator: xcrun simctl boot "iPhone 16 Pro"
MCP not connecting	Restart Claude Code after config change
Taps hitting wrong element	Use accessibility tree indices, not coordinates
Slow response	Reduce screenshot frequency in prompt
API 404 errors	Verify MobAI is running: curl http://127.0.0.1:8686/api/v1/devices

What's Next?

You now know how to:

Set up MobAI + Claude Code for iOS testing
Let Claude autonomously explore and test your entire app
Write repeatable DSL scripts for critical flows
Use the HTTP API for custom automation
Catch bugs without writing a single XCUITest

This approach works for Android too — just connect an Android emulator or device instead.
